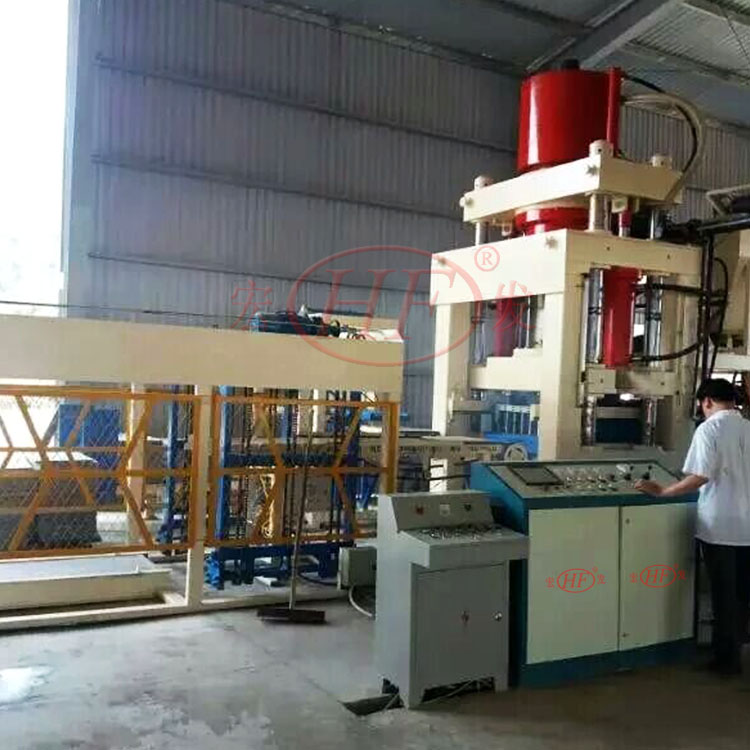

This machine is a special two-way hydraulic forming machine for electromechanical-hydraulic integration controlled by a programmable controller, which is randomly equipped with a special mold to produce self-insulation integrated energy-saving bricks. At the same time, it can also press and form fly ash bricks of various shapes and sizes only by changing the mold. It has high production efficiency and low labor intensity. It can use solid industrial waste such as steel slag and fly ash to manufacture high-strength new energy-saving building materials.

: forming host, feeder, hydraulic system, electrical system, brick machine, palletizing manipulator and other parts. The main components of the main engine include door frame, upper mold assembly, mold core and core seat plate assembly, No. 3 plate, lower mold and ejector rod assembly, and molding mold cavity. It consists of hook assembly and buffer.

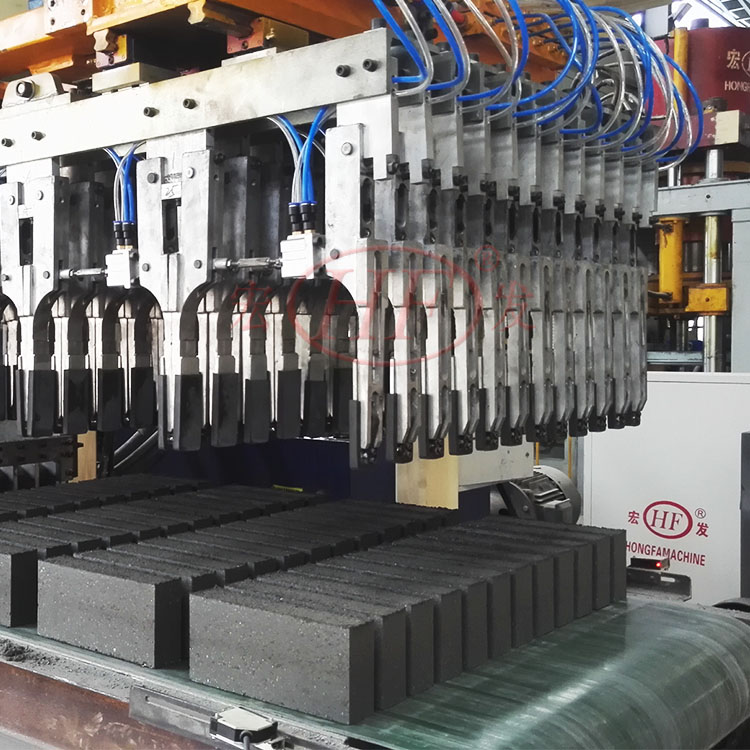

feeder are feeding frame, feeding frame, drawing plate, guide rail and silo. The brick receiving machine adopts pneumatic pulley, which is simple and reliable in principle, convenient in operation, reliable in performance and accurate in control. The hydraulic system consists of a hydraulic station, pipelines and oil cylinders, with reliable performance and accurate control. The hydraulic station consists of an oil tank, a motor high-pressure pump group, an integrated valve block group, a cooler and an oil inlet and return filter. At the same time, the oil tank is equipped with an oil temperature And the filter element alarm blocking device, when the filter element is blocked, the alarm device notifies the replacement of the filter element.

electrical system adopts Mitsubishi FX2N series PLC programmable controller, Siemens contactor and Omron relay, with automatic operation and automatic fault diagnosis function. And the use of safety logic control to effectively avoid misoperation, to ensure that the machine action is efficient and accurate, but also to ensure that the operator's personal safety.

basic parameters

1. Nominal pressure: 4200KN
2. Rated working pressure of hydraulic system: 25MPA
3. Oil pump motor: Y200L-4(30KW)
4. Oil pump: 160YCY14-1B
5. Molding cycle: 14-20 seconds
6. Capacity: 42 pieces/mold (folded brick)
7. The total weight of the machine 12.5T
