1. product introduction

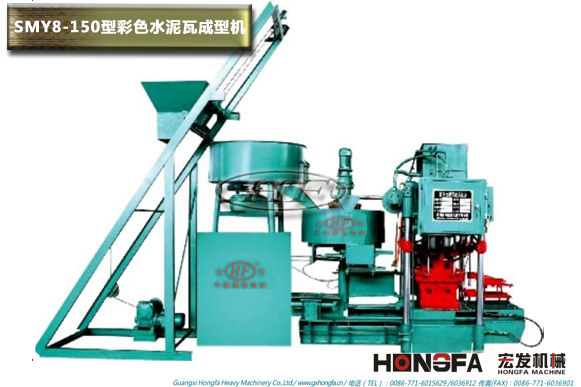

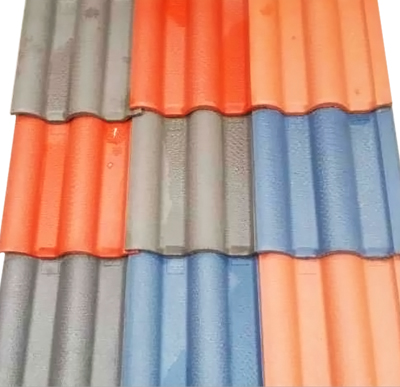

This machine adopts PLC automatic control, full hydraulic pneumatic molding, reliable performance, fast molding speed, high yield, up to 8 pieces per minute, high cost performance. The mortar concrete is formed by pressing and filtering, and the product structure is beautiful and generous, with high density and accurate size, which can meet the needs of various buildings. A multi-purpose machine, through the replacement of mold can produce all kinds of main tile, ridge tile, cornice tile, flat tile, ditch tile and other products.

2. technical parameters
(1) Product specification: 424 × 327mm
(2), molding pressure: 1200kN
(3), molding speed: 8 pieces/min
(4) Class output: 3500 tablets (8 hours/class)
(5), host power: 13.75kW
(6) Working voltage: 380V
(7), molding method: pressure filter molding
(8), die life: 80-900000 times
(9), host dimensions: 3100 × 1600 × 2600mm
(10) Weight of the whole machine: 5000kg
